Product Description:
IP68 Alloy Steel Column Type Load Cell for Heavy Duty Applications with High Precision (WL-144)
The heavy duty column type load cell is available in different load capacities from 5-500t.The column weight sensor is mainly used in electronic truck scales,dynamic railroad scale, big capacity hopper scale and other electronic weighing systems. The heavy duty load cell WL-144 features non-linearity of 0.02%F.S. and repeatability of 0.01%F.S.. The argon-arc welded design and IP 68 protection of the weight transducer provides strong resistance to water and corrosion for use in harsh environments. Besides, the load cell WL-144 has strong anti-overload capability and fast dynamic response,enabling it offer highly accurate and stable results.
The heavy column type load cells can also be modified or customized to meet customer requirements. At BRANS, we understand that every application is unique and requires a tailored solution. Our customized service allows us to modify our product to fit your specific needs, ensuring maximum accuracy and reliability. With our customized service, we aim to provide you with the best possible solution for your unique application.
Features:
- Heavy column load cells
- Made of stainless/alloy steel
- High accuracy, compensated off-center load error
- High precision and small deflection
- Shielded connection cable
- Anti-reversal design,self-resorting function,simple to install
- Hermetically sealed ,IP68 protection
- Different cable lengths and other options available
Technical Parameters:
| Capacity | 5-500T |
| Rated output | 1.75-2.00mV/V |
| Accuracy | C3 |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.02%F.S. |
| Repeatability | 0.01%F.S. |
| Hysteresis | 0.02%F.S. |
| Creep(30min) | 0.02%F.S. |
| Temp.effect on output | 0.02%F.S./10℃ |
| Temp.effect on zero | 0.02%F.S./10℃ |
| Input resistance | 450±5Ω |
| Output resistance | 480±5Ω |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 10VDC |
| Compensation temp.range | -10~50℃ |
| Operation temp. range | -20~60℃ |
| Safe overload | 120%F.S. |
| IP class | IP68 (Customizable) |
| Cable size | Φ6×9000mm (Customizable) |
| Material | stainless steel /alloy steel |

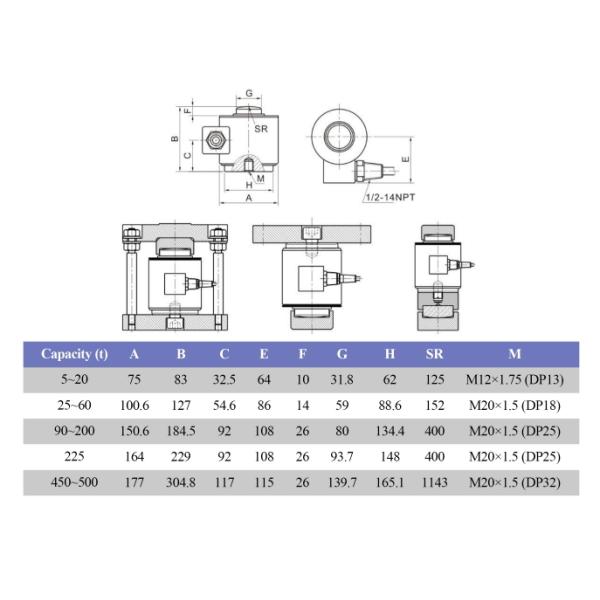

Dimensions (Unit:mm):
Load direction:
Wiring:
